Dahua DH-CHS4110-8ET - 8-портовый облачный коммутатор; 8xRJ45 100M, 1xRJ45 1G (uplink), 1xSFP 1G (uplink); питание 12VDC; грозозащита 6кВ; IP30, IK06

Basic

Layer

Layer 2

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.17 Mpps

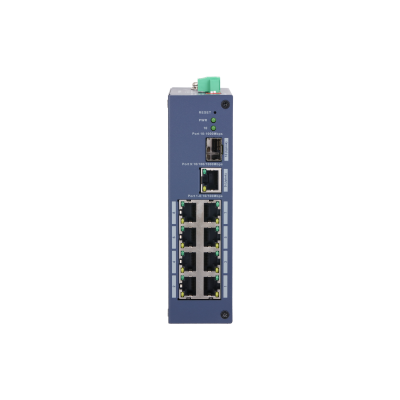

Description of Function Slots

Port 1-8: 8 × RJ-45 10/100 Mbps;
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink);
Port 10: 1 × SFP 1000 Mbps (uplink)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–90% (RH), non-condensing

Protection

IP30; IK06

Storage Temperature

–40 °C to +85 °C (–40 °F to +185 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External dual power supply (terminal block and DC): 12 VDC, 1 A

Included Power Adapter

Yes

Power Consumption

Idling: 1.2 W
Full load: 2.9 W

Statics Protection

Air discharge: 8 kV;
Contact discharge: 6 kV

Lightning Protection (Ethernet Port)

Common mode: 6 kV;
Differential mode: 2 kV

Net Weight

0.4 kg (0.88 lb)

Gross Weight

0.67 kg (1.48 lb)

Product Dimensions

154.4 mm × 110.4 mm × 42 mm (6.08" × 4.35" × 1.65") (L × W × H)

Packaging Dimensions

299 mm × 164 mm × 72 mm (11.77" × 6.46" × 2.83") (L × W × H)

Casing Material

Iron

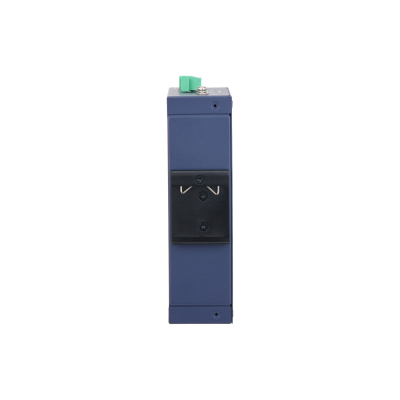

Installation

Desktop mount;
DIN-rail mount

Certifications

CE

PoE

PoE

No

Hardware

DIP Switch

Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Port isolation: Prevents traffic from being sent between ports 1-8, but allows ports 1-8 to send its traffic to the uplink ports 9–10. These uplink ports can also send their traffic to 1-8.
Storm control: Limits the speed of all the ports to 5 Mbps.

Reset Button

1

Performance

MTBF

1,998,124.96 hours

Packet Buffer Size

4 Mbit

Jumbo Frame

9216 Byte

MAC Table Size

8K

Total Static MAC Addresses

16

Flash

2 MB

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z

VLAN Number

32

Traffic Limit Granularity

1 Mbps

Feature

LLDP

Yes

VLAN Function

IEEE 802.1Q VLAN

Port Feature

Supports IEEE 802.3x Flow Control;
Supports Unknown Unicast Suppression;
Supports Multicast Storm Control;
Supports Broadcast Storm Control;
Supports MAC+Port Binding;
Supports Loop Prenvention

Mirror

Local Port Mirroring;
N:1 Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation

Equipment Management

Web Management
Cloud Management
Logs
Fault Alarm

General

Packing List

1 × User Manual;
1 × Legal and Regulatory Information;
1 × Power Adapter;
1 × Terminal Block
