Dahua DH-CHS4412-8GT-125 - 8-портовый гигабитный PoE облачный коммутатор; 2xRJ45 1G (PoE/PoE+/Hi-PoE/802.3bt), 6xRJ45 1G (PoE/PoE+), 4xSFP 1G (uplink); суммарно 125Вт; watchdog,до 250м; грозозащита 8кВ

Basic

Layer

Layer 2

Switching Capacity

24 Gbps

Packet Forwarding Rate

17.856 Mpps

Description of Function Slots

Port 1-8: 8 × RJ45 10/100/1000 Mbps (PoE)
Port 9-12: 4 × SFP 100/1000 Mbps (uplink)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–90% (RH), non-condensing

Protection

IP30;IK06

Storage Temperature

-40 °C to +85 °C (-40 °F to +185 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

External dual power supply (terminal block and DC): 50–57 VDC, 2.7–2.37 A

Power Consumption

Idling: 3 W
Full load: 134.5 W

Statics Protection

Air discharge: 15 kV
Contact discharge: 8 kV

Lightning Protection

Power Port: Common mode/Differential mode 6 kV
Network Port: Common mode 10kV,Differential mode 2kV

Net Weight

0.72 kg (1.59 lb)

Gross Weight

1.73 kg (3.81 lb)

Product Dimensions

171.8 mm × 133.4 mm × 42 mm (6.76" × 5.25" × 1.65") (L × W × H)

Packaging Dimensions

314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)

Casing Material

Sheet metal

Installation

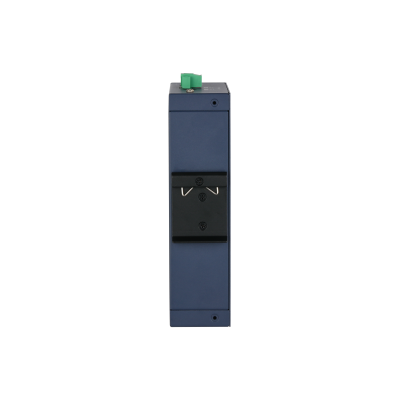

DIN rail mount; desktop mount

PoE

PoE

Yes

PoE Power

Port 3-8≤30 W, port 1–2≤90 W, total≤125 W

PoE Protocol

IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt

PoE Power Consumption Management

PoE power consumption management; PoE power on/off; turns off PoE if overload is detected;

PoE Pin Assignment

Port 1-2: 1,2,4,5（V+）,3,6,7,8（V-）
Port 3-8: 1,2,（V+）,3,6,（V-）

Long Distance PoE Transmission

Yes

Perpetual PoE

Yes

Hardware

DIP Switch

Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.

Reset Button

1

Performance

MTBF

1,179,412h

Packet Buffer Size

8.4 Mbit

Jumbo Frame

12288 Byte

MAC Table Size

8K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad

Management VLAN

Yes

VLAN Number

32

Dynamic ARP

10

Feature

Ethernet Loop Protection

STP; RSTP

VLAN Function

IEEE 802.1Q VLAN

Link Aggregation

Static Aggregation

Port Feature

IEEE 802.31x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
loop prenvention

Mirror

Local Port Mirroring

Reliability

LLDP

DHCP Function

DHCP Client

Security

Port Isolation

Equipment Management

Web Management
Cloud Management
Logs
Fault Alarm
Virtual Cable Test

General

Packing List

1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
