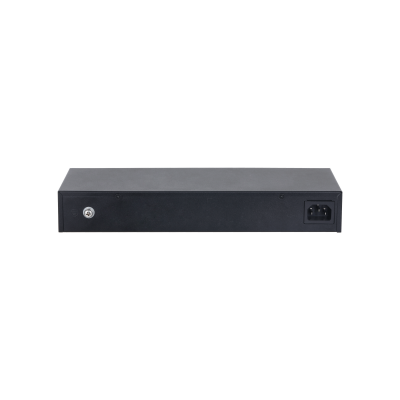

Dahua DH-S3024-24GT - 24-портовый неуправляемый коммутатор; 22xRJ45 1G, 2xRJ45 1G (uplink); питание 100–240V; Изоляция портов, агрегация портов

Basic

Layer

Layer 2

Switching Capacity

48 Gbps

Packet Forwarding Rate

35.712 Mpps

Description of Function Slots

Port 1-22: 22 × RJ-45 10/100/1000 Mbps;

Port 23-24: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Supply

Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Power Consumption

Idling: 2.7 W;

Full load: 12.3 W

Statics Protection

Air discharge: 8 kV;

Contact discharge: 6 kV

Lightning Protection

Common mode: 2 kV;

Differential mode: 0.5 kV

Net Weight

0.83 kg (1.82 lb)

Gross Weight

1.34 kg (2.95 lb)

Product Dimensions

294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)

Packaging Dimensions

353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)

Casing Material

Sheet Metal

Installation

Desktop mount; wall mount; rack mount

Certifications

CE

Hardware

DIP Switch

Default: Default setting

Post isolation: Prevents traffic from being sent between ports 1-22, but allows ports 1-22 to send its traffic to the uplink ports 23-24. These uplink ports can also send their traffic to 1-22.

Port aggregation: Aggregates uplink ports.

Performance

Packet Buffer Size

8.4 Mbit

Jumbo Frame

12K Byte

MAC Table Size

16K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

Feature

Link Aggregation

Static link aggregation

Port Feature

IEEE 802.3x traffic control

IEEE 802.3x Flow Control

Yes

General

Packing List

1 × User Manual;

1 × Legal and Regulatory Information;

1 × Power Cord;

1 × Rack-mounting Kit;
